High-power DC power supply

Customized High-Power AC/DC Power Supply System

High-current DC power supply (up to 40,000 A);
Mine magnetic separator power supply;
High-voltage starting power supply;
> CNG compressor system;

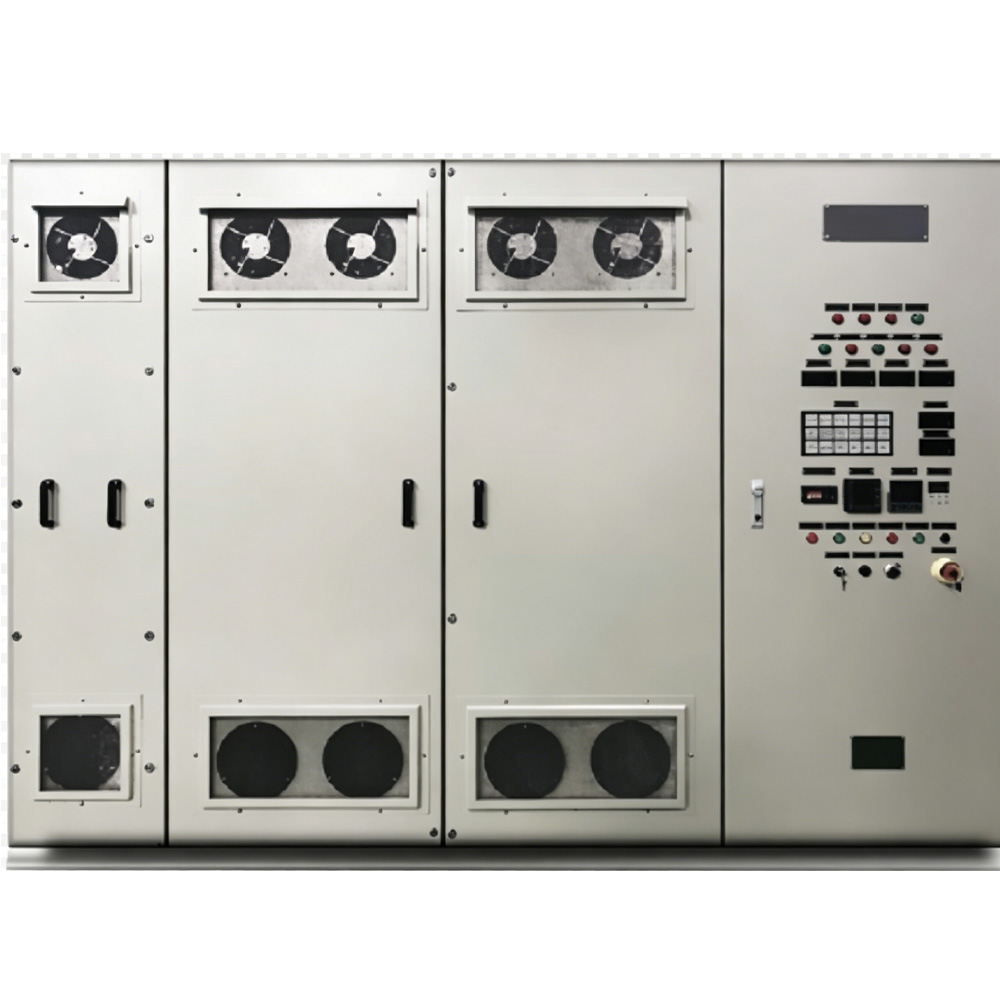

Standard power control cabinet;
> PECVD control power supply;
Cold hydrogenation heating system;
> Communication sapphire crystal growth power supply;
> Float glass line heating system;
High-voltage electrostatic precipitator voltage control system;
DC electroplating and electrolysis power supply;
> Power supply for steel plate surface cleaning;
Custom power supply;

▇ The power supply features overcurrent protection, shutting off the output within half a cycle when the output exceeds twice the rated current;
▇ Output is shut off when the temperature of the controller heat sink or main transformer exceeds the set threshold;
▇ The power supply supports MODBUS and PROFIBUS module expansion for convenient factory-wide control;
▇ It offers multi-unit power supply parallel operation with power distribution capability, effectively reducing system impact on the grid, improving distribution transformer utilization, and lowering overall system investment;
▇ The power supply provides an excellent human-machine interface for easy on-site operation;
▇ The factory can customize equipment dimensions according to specific site space requirements, offering either integrated or split configurations.

Technical Specifications
Power Supply: Main circuit: AC 260–440V; Control board power: AC 160–240V; Frequency: 45Hz–65Hz

Input Ports: 0–5V / 0–10V / 0–20mA / 4–20mA analog input, 3 digital inputs, 1 digital output, MODBUS-RTU

Trigger Modes: Phase shifting, CM mode, zero-crossing (expandable with networked power distribution function)

Control Accuracy: ±0.1%

Protection Functions: Phase loss, overcurrent, overheating, overload, load disconnection

Control Modes: Constant voltage, constant current, constant power, CM mode, open loop

Expansion Modules: External feedback, external display interface, Profibus-DP, MODBUS TCP/IP, analog output, TRMS true RMS

Cooling Method: Air-cooled or water-cooled, selectable based on user requirements

Operating Environment: -10°C to +50°C; derating required above 45°C; derating according to GB/T3859.2-93 required at altitudes above 1000 meters

Dimensions (mm):
Power control cabinet: 1850 × 800 × 600 (H × W × D)
Transformer cabinet: 1150 × 1200 × 750 (H × W × D)

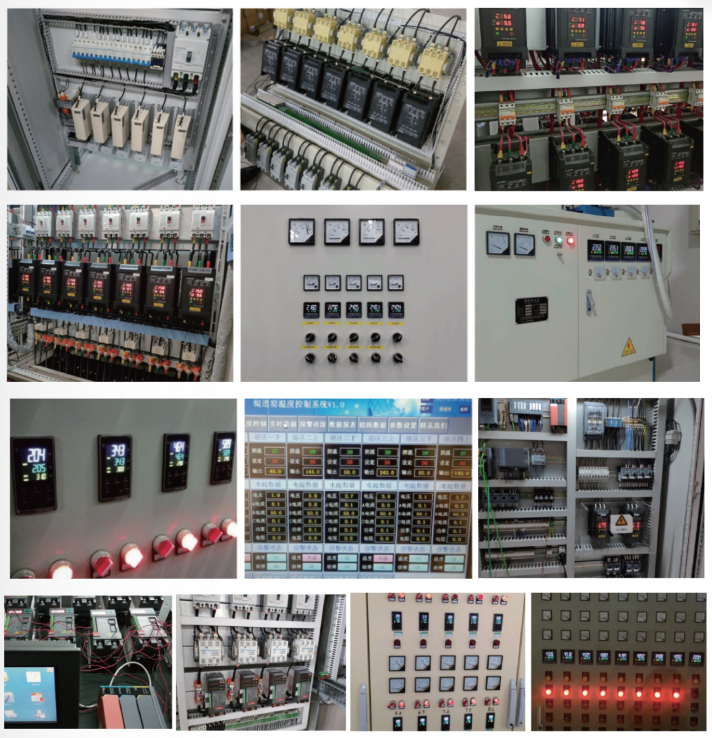

Temperature control system solution

We integrate the company’s superior product resources and, based on different temperature control systems, formulate reasonable solutions and deliver the entire temperature control system’s software and hardware to provide users with a one-stop service, eliminating customers’ worries. The solutions we have provided so far include push-plate kiln solutions, bell jar kiln solutions, shoe-making machinery solutions, painting machinery solutions, roller conveyor kiln solutions, and high-temperature kiln solutions. We are constantly expanding these solutions.
