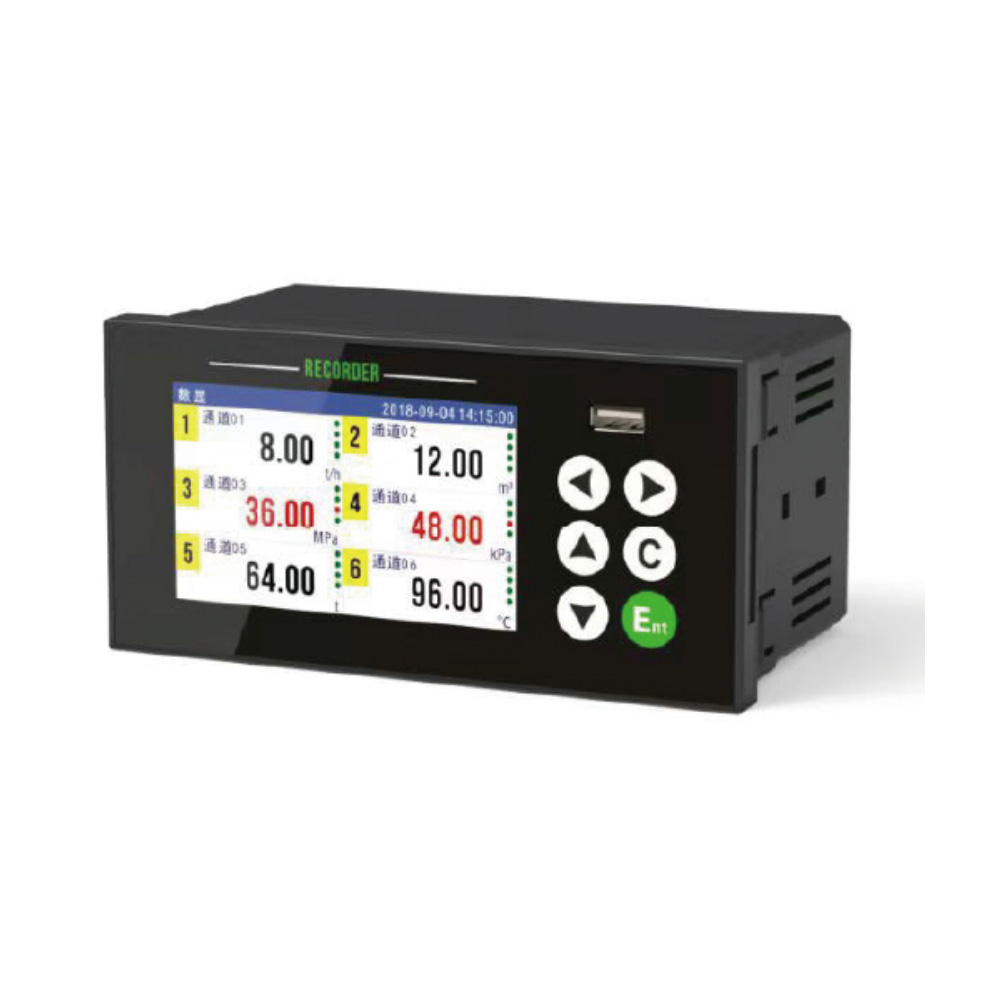

Paper Recorder / Paperless Recorder
Description
Product Features

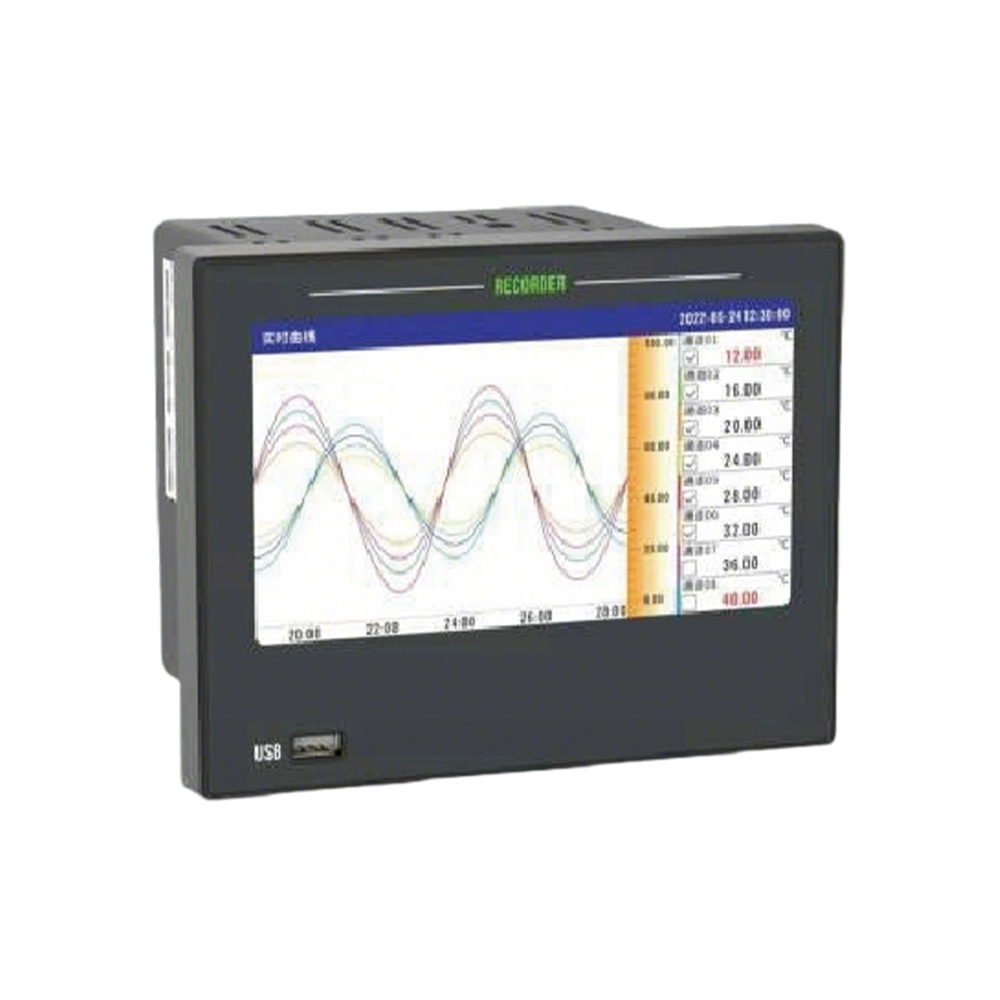

- 7-inch High-Definition Touch Color LCD Screen
- Standard 138*138 Panel Cutout Size
- High-Speed USB Mass Storage Interface for USB Flash Drive
- Up to 32 Isolated Universal Input Channels
- Up to 16 Relay Output Channels
- Up to 8 Current Transmitter Output Channels
- 2 Channels of 24VDC Auxiliary Power Supply
- RS485 Communication Interface, Compliant with Standard MODBUS RTU Protocol
- Ethernet Communication Interface, Compliant with Standard MODBUS TCP Protocol
- Mini Printer Interface for Data Curve Printing
- 64MB Memory, Stores Up to 900,000 Historical Records
- Stores 256 Channel Alarm Records
- Stores 256 Power-Failure Records & Operation Logs
- Built-in Chinese/English Bilingual Free Switching Function
- Signal Configuration with Chinese Pinyin Support
- Virtual Channel Calculation Function
- RS485 Digital Input Acquisition Interface
| Analog Signal Input Specifications | Voltage Signals: 0-20mV, 0-50mV, 0-100mV, 0-5V, 1-5V, Square Root Extraction for 1-5V, 0-10VCurrent Signals: 0-10mA, 4-20mA, Square Root Extraction for 4-20mARTDs: PT100, Cu100, Cu50Thermocouples: E, T, K, S, B, J, R, N |
| Sampling Period | 1 second |
| Display LCD | 2.7-inch 128×64 high-brightness OLED LCD screen |
| Power Supply Specifications | AC: 100~240VAC, frequency 47~63Hz, max power <40W |
| Auxiliary Power Output | 24VDC ±10%, 60mA |
| Relay Output | 8 channels, 250VAC, 5A, normally open contacts |
| USB Interface | High-capacity USB flash drive port |
| Transmitter Output | 4 channels of 4-20mA transmission output |
| Real-Time Clock | Independent hardware clock chip, lithium battery powered, data retained during power failure |

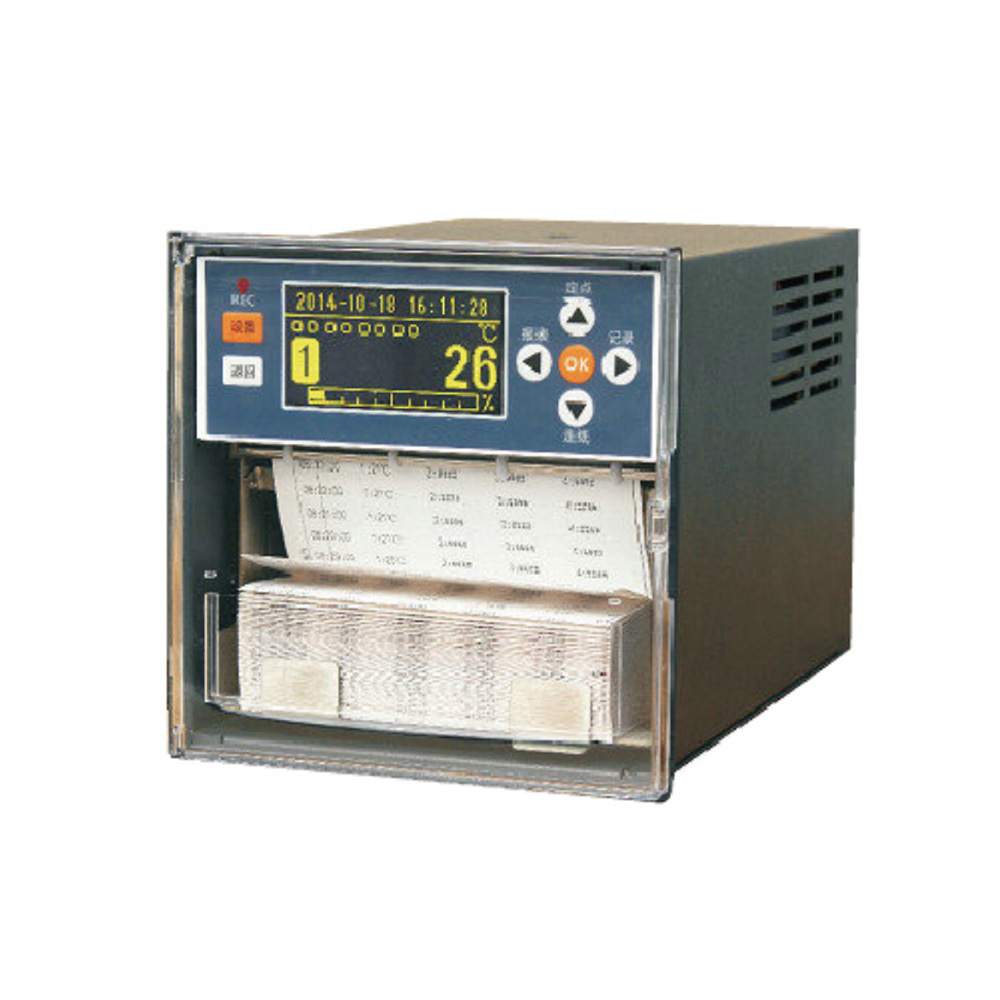

| Recording Paper | Foldable type, width 120mm, length 8000mm |
| Operating Conditions | Ambient temperature: 0~50°C; Relative humidity: 0~85%RH (non-condensing) |
| Signal Category | Signal Type |
| Current | 4~20mA, 0~20mA, 0~10mA, Square root extraction for 4~20mA |
| Voltage (mV) | 0~20mV, -20~20mV, 0~100mV, -100~100mV |
| Voltage (V) | 1~5V, 0~5V, -5~5V, 0~10V, -10~10V |
| Thermocouple | K, S, B, J, R, N, T, E, WRe3-25, WRe5-26, F1, F2 |
| RTD (Resistance Temperature Detector) | Pt100, Cu50, Cu53, Cu100 |
| Frequency (Customized) | 0–10000Hz |
| Analog Waveform | Sin, Cos |
