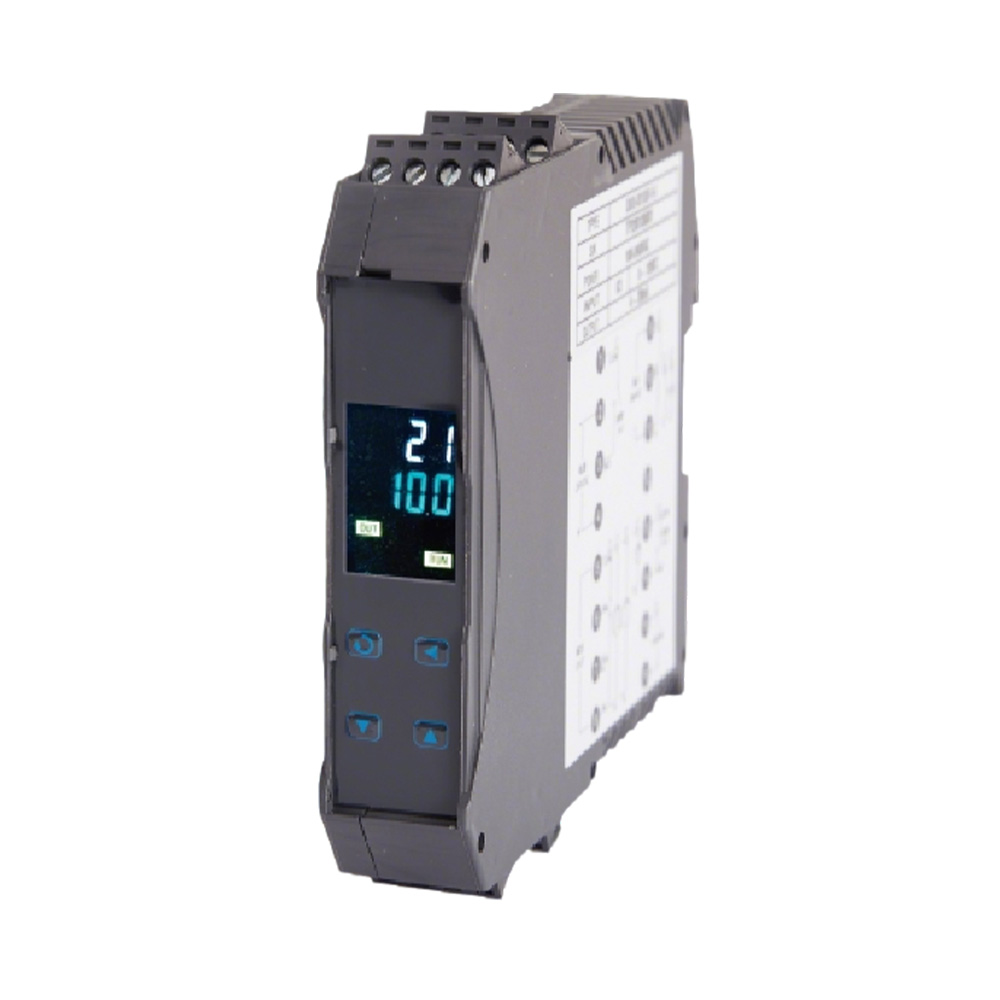

Q800 Series Intelligent LCD Temperature Controller

Product Features

• Newly developed with tri-color LCD screen, delivering bright, distinct colors and superior display visual effect.
• Compact DIN rail mounting design with only 22.7mm width, saving installation space and enabling dense arrangement of multiple units.
• Optional quick-install connectors for parallel connection of power and communication ports across all controllers; connecting just one unit links all devices in parallel.
• All control parameters can be read and written via communication, eliminating the need for keypad operation on the instrument.
• Advanced PID control algorithm provides fast, stable constant temperature control with minimal temperature fluctuation.
• Supports up to 30-segment program curves to perform heating, constant temperature holding and cooling as per process requirements.
• Equipped with standard RS-485 communication interface, compatible with MODBUS RTU protocol.
• Alarm mode supports digital output (DO) function: the upper computer can directly send logic 0/1 to switch the contact off/on, facilitating the construction of simple automatic control systems.

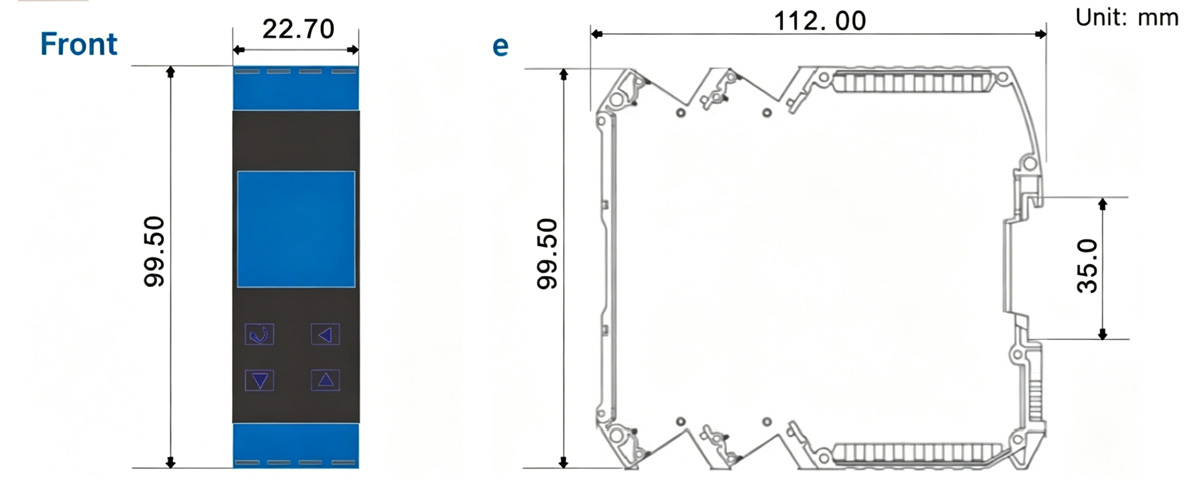

Dimensions Drawing Of  The Shape
