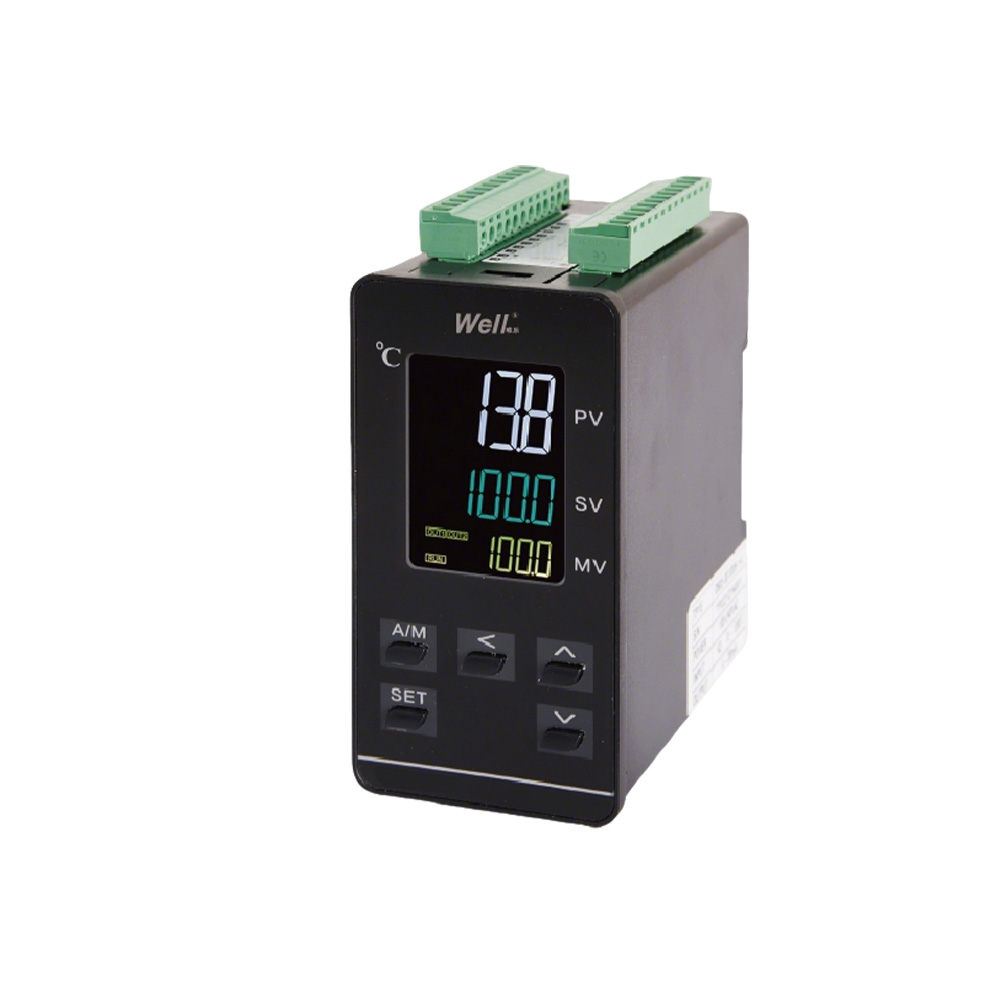

TD800 Series Intelligent Liquid Crystal Temperature Controller

Product Features

• Adopts a three-color LCD screen with bright, vivid colors for an elegant display effect.
• Designed for DIN rail mounting, converting the traditional 48*96 panel mounting form into cabinet internal installation to facilitate system integration.
• Equipped with the latest 32-bit industrial-grade RENESAS CPU from Japan. RENESAS chips are widely applied in high-reliability scenarios such as automotive electronics.
• Universal input supports various thermocouples and thermal resistors, as well as linear signals including 4~20mA and 0~10V inputs.
• Further optimized PID control algorithm with exclusive anti-overshoot PID control, delivering outstanding performance for high-hysteresis controlled objects like electric furnaces.
• Supports up to 50 program segments, which can be divided into 1 or 5 groups of curves according to process requirements.
• Built-in RS-485 communication interface compatible with MODBUS RTU protocol, and master-slave communication mode is configurable.
• Multiple output options available: non-feedback proportional motor output, single-phase zero-crossing output, and phase-controlled SCR trigger output.
• Pluggable wiring terminals simplify wiring work and facilitate maintenance & replacement in later stages.

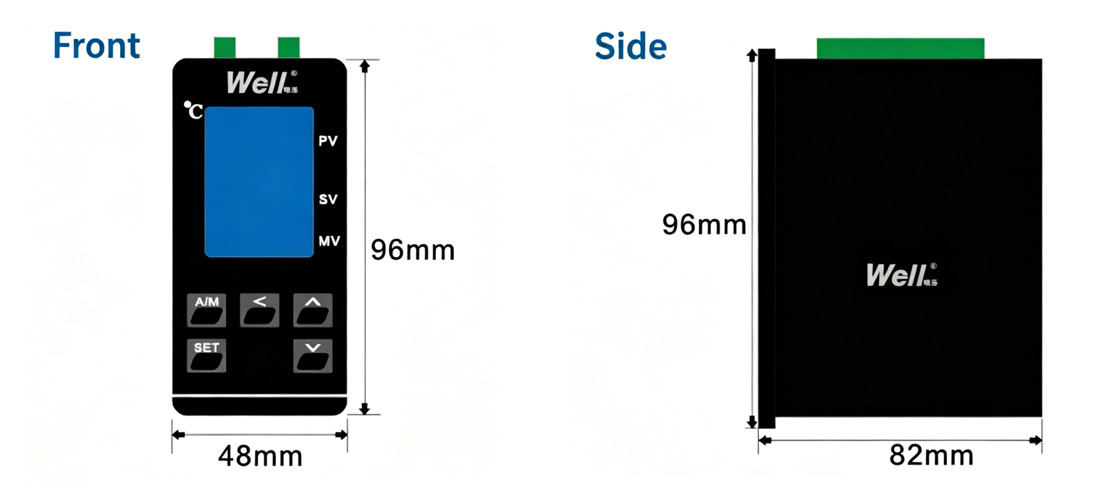

Dimensions Drawing Of  The Shape
